एंडोस्कोपी प्रोसेसर
>
|

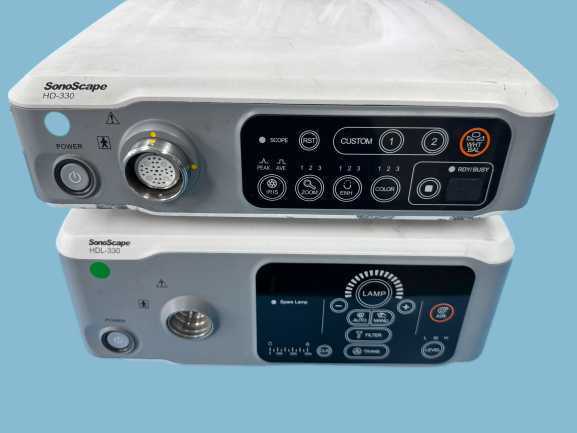

| मॉडल संख्या | एचडी-330+एचडीएल-330 |
Full‑HD Imaging
1.0‑megapixel CMOS sensor
Output: 1920 × 1080 (Full HD)
Intelligent Image Optimization
Auto White Balance (with WB cap)
AGC (Auto Gain Control): On/Off
Auto Brightness Control: Auto / Peak / Average (±9 adjustable)
Edge Enhancement: 3 modes, level 0–8
Contrast Enhancement: Low / Medium / High
CHb Vascular Enhancement: level 0–8
Color Adjustment: Red (‑8~+8), Blue (‑8~+8); Saturation (‑9~+9)
Digital Magnification
×1.4 / ×1.6 / ×1.8 (one‑touch)
Integrated Workstation
500 GB HDD for image/video storage
Freeze, capture, store, recall images
DICOM 3.0 compatible (PACS connectivity)
Patient data management & report generation
Capture trigger: footswitch / handpiece / keyboard
Customization & Connectivity
4 programmable front‑panel buttons
Display modes: Full screen / Dual‑screen
Video outputs: HDMI, DVI, VGA, S‑Video, CVBS
Technical Specifications
Imaging element: 1.0 MP CMOS
Resolution: 1920 × 1080 (Full HD)
Power supply: 100–240 V AC, 50/60 Hz
Dimensions (W×D×H): approx. 320 × 280 × 90 mm
Weight: approx. 6.5 kg
Natural‑Color Illumination
300 W xenon lamp
Color temperature: ≥5,900 K (close to sunlight)
High color rendering index: Ra ≥ 90
Smart Brightness Control
Auto brightness regulation
Manual adjustment: 0–100%
Hot‑plug support (change scopes without shutdown)
Long‑Life & Stable Performance
Lamp life: approx. 500 hours
Low heat, low noise, suitable for long procedures
Technical Specifications
Light source: 300 W xenon lamp
Color temperature: ≥5,900 K
CRI: Ra ≥ 90
Brightness: Auto + manual (0–100%)
Endoscope interface: Standard (hot‑plug capable)
Power supply: 100–240 V AC, 50/60 Hz
Dimensions (W×D×H): approx. 320 × 280 × 90 mm
Weight: approx. 7.0 kg
Core Advantages
Brilliant HD visualization: fine mucosal details & early lesions clearly visible
True‑to‑life colors: xenon light ensures accurate tissue color reproduction
Efficient workflow: customizable keys, hot‑plug, one‑touch capture
All‑in‑one data management: built‑in workstation + DICOM for seamless hospital integration
System Compatibility & Applications
Compatible scopes: SonoScape 330‑series HD endoscopes (gastroscopes, colonoscopes, bronchoscopes)
Clinical applications:
Gastroenterology (EGD, colonoscopy)
Pulmonology (bronchoscopy)
General surgery & minimally invasive procedures
